Thanks to our comprehensive and variable forming solutions,we are able to produce the various type of rods by extrusion pressing, and also the direct pressing of blanks such as rotary bur blanks, disc cutters etc.
Special developed grades upon application, high precision press tools designed built in house, offer tighter tolerance control, which ensures higher performance of products delivered to you.
| T (mm) | Tol. | W(mm) | Tol. | L(mm) | Tol. |
| 1.5-4.0 | ＋0.2/＋0.5 | 4.0 | ＋0.2/＋0.7 | 330 | ＋1.0/＋6.0 |
| 1.5-5.0 | 5.0 | ||||
| 1.5-6.0 | 6.0 | ||||
| 1.5-7.0 | 7.0 | ||||
| 1.5-8.0 | 8.0 | ||||
| 1.5-10.0 | 10.0 | ||||
| 1.5-12.0 | 12.0 | ||||
| 2.0-8.0 | 14.0 | ||||
| 2.0-8.0 | 15.0 | ||||
| 2.0-8.0 | 16.0 | ||||
| 2.0-8.0 | 18.0 | ||||
| 2.0-8.0 | 20.0 | ||||
| 2.0-8.0 | 22.0 | ||||
| 2.0-8.0 | 25.0 | ||||
| 2.0-8.0 | 26.0 | ||||
| 2.0-8.0 | 30.0 | ||||
| 2.0-8.0 | 32.0 | ||||
| 2.0-8.0 | 35.0 | ||||
| 2.0-8.0 | 40.0 | ||||
| 2.0-8.0 | 45.0 |
Above data are typical parameters.

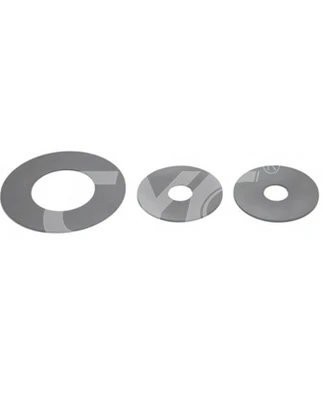

| D | Tol. | d | Tol. | T ToL.+0.2~0.3 |
| 11.0 | 0/+0.5 | 4.0 | -0.3/0 | 0.6~2.5 |
| 17.2 | 4.5 | |||
| 19.0 | 7.3 | |||
| 19.0 | 5.3 | |||
| 20.0 | 7.3 | 0.6~3.5 | ||
| 21.5 | 5.3 | |||
| 30.2 | 5.5 | |||
| 31.2 | 9.5 | |||
| 41.2 | 7.3 | 0.6~4.2 | ||
| 41.2 | 12.2 | |||
| 41.2 | 14.8 | -0.4/0 | ||
| 46.0 | 15.0 | |||
| 51.5 | 11.5 | 0.7~4.5 | ||
| 51.5 | 15.0 | |||
| 51.5 | 20.8 | |||
| 51.5 | 24.5 | |||
| 54.5 | 15.0 | |||
| 61.5 | 15.0 | |||
| 61.5 | 21.4 | |||
| 61.5 | 24.5 | |||
| 62.5 | 0/+0.8 | 16.0 | 0.7~4.5 | |
| 62.5 | 14.7 | |||
| 62.5 | 15.8 | |||
| 64.5 | 14.8 | |||
| 66.5 | 14.5 | |||
| 66.5 | 15.0 | |||
| 66.5 | 21.0 | |||
| 71.5 | 14.5 | 0.7~5.0 | ||
| 71.5 | 15.3 | |||
| 71.5 | 24.5 | |||
| 71.5 | 20.5 | |||
| 75.5 | 20.5 | |||
| 75.5 | 15.0 | |||
| 75.5 | 24.0 | |||
| 81.5 | 20.5 | |||
| 81.5 | 24.5 | |||
| 102.0 | 0/+1.0 | 20.5 | ||
| 102.0 | 65.0 | -0.7/0 | ||
| 109.0 | 60.0 | |||
| 152.0 | 30.5 | -0.5/0 |
Above data are typical parameters.
