Miling inserts for Cast Iron

Name: Milling Inserts for Cast Iron
Brand: CY CARBIDE MFG. CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

PDF Download Get a Quote

CYCT's cast iron milling inserts are designed for high-efficiency milling with superior surface quality. These inserts provide excellent wear resistance and extended tool life, ensuring consistent performance in both roughing and semi-finishing operations. CYCT milling inserts supplier specializes in cast iron cutting inserts, designed to offer superior heat resistance and precision in high-speed machining applications.

Specification of Miling inserts for Cast Iron



Miling inserts for Cast Iron

 

Shape	Type	Basic Dimension (mm)					CVD Grade
Shape	Type	L	IC	S	d	Re	CA5105	CA5120	CK6020
	APMT1135PDER-CM	11.25	6.26	3.5	2.8	0.8	●	●	●

	APMT1604PDER-CM	17.44	9.32	5.2	4.4	0.8	●	●	●

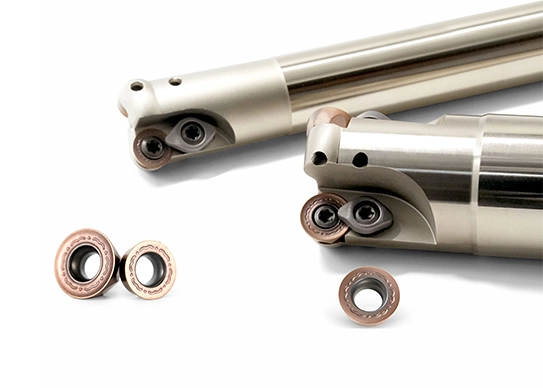

	RPMT1003MO-CM		10	3.18	4.6	5	●	●	●

	RPMT1204MO-CM		12	4.76	4.4	6	●	●	●

	RPMT100T3		10	3.97	4	5	●	●	●

	RPMT1204MO-MR		12	4.76	4.45	6	●	●	●

	RPMT1604MO-MM		16	4.76	5.6	8	●	●	●

	ROMX2006MOT		20	6.35	6.5	10	●	●	●

	XNMU060508	6	13	5.56	4.32	0.8	●	●	●

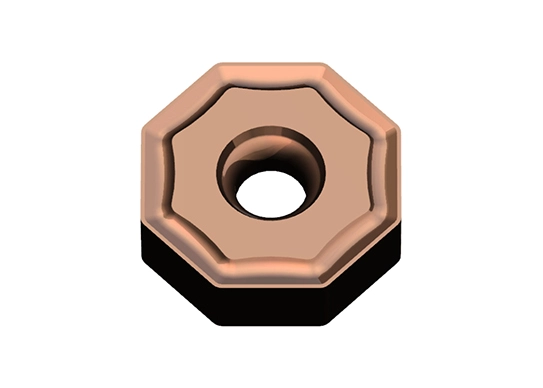

	ONGU050403-CR	5	12.7	4.76	4.4	0.3	○	●	●
	ONMUO60408-CR	6	15.875	4.9	4.35	0.8	○	●	●
	ONGU080508-CR	8	20.2	5.8	5.4	0.8	○	●	●

	ODMT0605ANN-CR	6	15.875	5.56	5.5	0.8	●	●	●
	ODMT050408-CR	5	12.7	4.76	4.4	0.8	●	●	●

	WNMU060408R-YM	6	10.15	4.36	4.2	0.8	●	●	●
	WNMU040304EN-YM	4	6.7	3.06	3.2	0.4	●	●	●

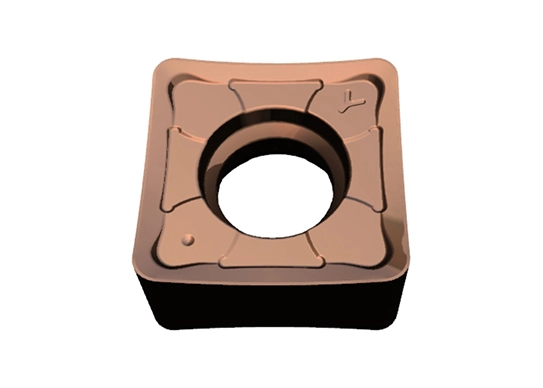

	SNMU1206ANN-Y	12	12.7	5.5	5.95	0.8	●	●	●

	SNMU120612-Y	12	12.7	5.56	6	1.2	●	●	●
