Carbide Balls

Name: Carbide Balls
Brand: CY CARBIDE MFG. CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

PDF Download Get a Quote

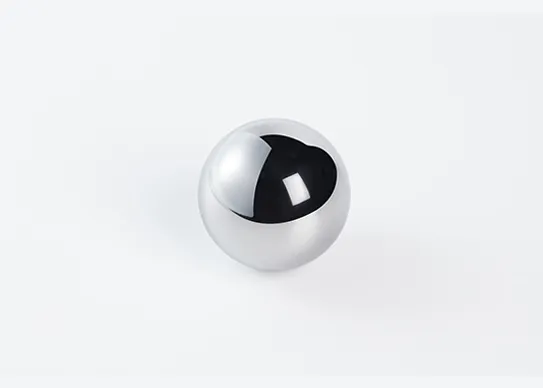

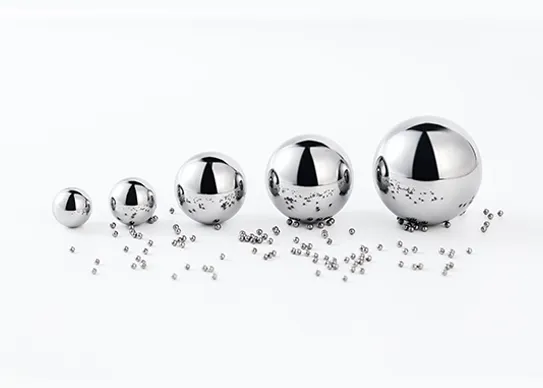

CYC’s carbide balls are precision-engineered for used in applications requiring extreme hardness, wear resistance, and strength. These balls are ideal for used in bearings, valves, and other high-performance mechanical components. With excellent durability and precision, our carbide balls provide reliable performance in demanding environments.

Specification of Carbide Balls

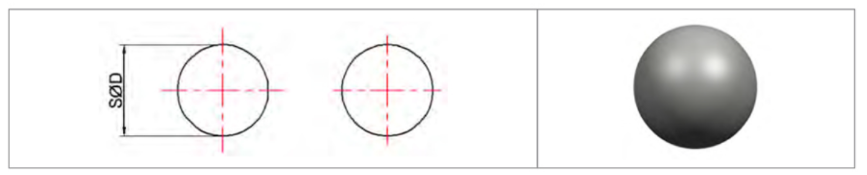

API Ball	OD(inch)	OD(mm)
V11-106	5/8	15.875
V11-125	3/4	19.05
V₁1-150	15/16	23.8125
V₁1-175	1-1/8	28.575
V1I-225	1-3/8	34.925
V₁1-250	1-11/16	42.8625
V11-375	2-1/4	57.15

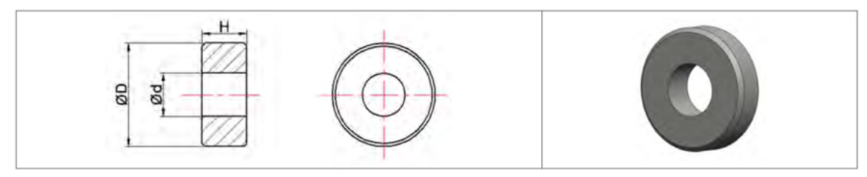

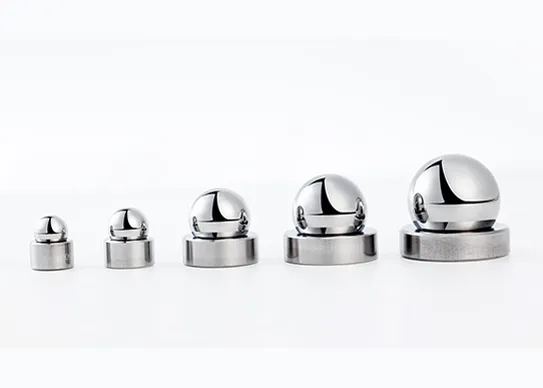

API Seat	OD(inch)	ID(mm)	ID(inch)	ID(mm)	L(inch)	L(mm)
V11-106	0.793	20.142	0.468	11.89	0.5	12.7
V11-125	0.918	23.317	0.575	14.61	0.5	12.7
V11-150	1.168	29.667	0.702	17.83	0.5	12.7
V11-175	1.388	35.255	0.830	21.08	0.5	12.7
V11-225	1.720	43.688	1.046	26.57	0.5	12.7
V11-250	2.010	51.054	1.265	32.13	0.5	12.7
V11-375	3.072	78.029	1.752	44.5	0.75	19.05
